Commercial Flagpoles
(Select a categories above)
These cone tapered flagpoles have been manufactured to meet or exceed architectural standard for quality, strength, and finish. These are made from high strength tubing specifically designed for commercial applications. Our commercial grade flagpoles are available in a variety of heights with lots of options on bottom diameter , top diameter & wall thickness. We sell aluminum, fiber glass and steel flag poles Please call for availability and pricing if you don't see the flagpole to meet your specifications.

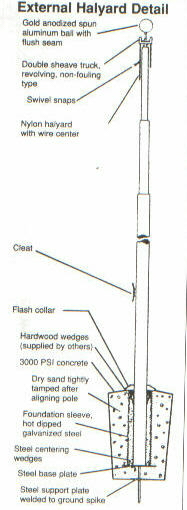

External Halyard

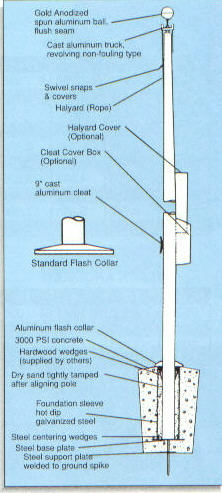

STANDARD ACCESSORIES
|
|
| Model | Exposed Height | Overall Length | Diameter | Wall | Unflagged Wind Speed | Flagged Wind Speed | Shipping Weight | Price | ||||
| Butt | Top | Constant | W/Gust Factor | Flag Size | Constant | W/Gust Factor | ||||||
| Each | ||||||||||||
| SS20 | 20' | 22' | 3" | 1 7/8" | .125 | 91 MPH | 118 MPH | 3' X 5' | 71 MPH | 92 MPH | 50 lbs. | $425 |
| SS25 | 25' | 27 1/2' | 3" | 1 7/8" | .125 | 69 MPH | 89 MPH | 4' X 6' | 54 MPH | 70 MPH | 55 lbs. | 525 |
| S30 | 30' | 33' | 4 " | 2 3/8" | .125 | 68 MPH | 88 MPH | 5' X 8' | 54 MPH | 70 MPH | 104 lbs. | 795 |
| S35 | 35' | 38 1/2' | 5" | 3" | .125 | 65 MPH | 84 MPH | 6' X 10' | 54 MPH | 70 MPH | 150 lbs. | 1,095 |
| Model | Exposed Height | Overall Length | Diameter | Wall | Unflagged Wind Speed | Flagged Wind Speed | Shipping Weight | Price | ||||
| Butt | Top | Constant | W/Gust Factor | Flag Size | Constant | W/Gust Factor | Each | |||||
| X20 | 20' | 23' | 5" | 3" | .125 | 191MPH | 284MPH | 3' x 5' | 115MPH | 149MPH | 92 lbs. | $ 830 |
| X25 | 25' | 28' | 5" | 3" | .125 | 106MPH | 137 MPH | 4' x 6' | 84 MPH | 109MPH | 113 lbs. | 885 |
| X30 | 30' | 33' | 5" | 3" | .125 | 80MPH | 104 MPH | 5' x 8' | 66 MPH | 85MPH | 128 lbs. | 990 |
| X35 | 35' | 38 1/2' | 6" | 3 1/2" | .156 | 92MPH | 119 MPH | 6' x 10' | 70 MPH | 91MPH | 190 lbs. | 1,535 |
| X40 | 40' | 44' | 7" | 3 1/2" | .156 | 94MPH | 122 MPH | 8' x 12' | 70 MPH | 91MPH | 267 lbs. | 2,315 |
| X50 | 50' | 55' | 8" | 3 1/2" | .188 | 91MPH | 118 MPH | 10' x 15' | 69 MPH | 89MPH | 360 lbs. | 3,295 |
| X60 | 60' | 66' | 10" | 4" | .188 | 94MPH | 122 MPH | 12' x 18' | 68 MPH | 88MPH | 520 lbs. | 4,785 |
| X70 | 70' | 77' | 10" | 4" | .312 | 98MPH | 127 MPH | 15' x 25' | 70 MPH | 91MPH | 695 lbs. | 7,665 |
| C80 | 80' | 88' | 12" | 4" | .375 | 108MPH | 140 MPH | 20' X 30' | 81 MPH | 105 MPH | 1020 lbs. | 10,288 |
Commercial Steel Flag Poles
Both external and internal halyard flagpoles are
fabricated from all new seamless steel tubing. Diminishing section, welded
together, form a graceful tapered appearance. Although sizes below are
most commonly used, we can fabricate other sizes to any
specifications.
 |
 |
 |
 |
|
|
|
| Ball - 14 Ga. aluminum with flush seam. Gold
Anodized furnished unless otherwise specified or choose Clear Anodized
(Silver) or finished to match shaft.
Truck- heavy-duty, external halyard, non-fouling, revolving-type with 26 stainless steel ball bearing. Finished to match shaft. Halyard - standard equipment includes one waterproof, mildew and U.V. resistant nylon halyard with wire center. Cleat - heavy-duty cast aluminum finish to match shaft. Secured with two stainless steel, flat-head, tamper-proof machine screw. Collar - ornamental base or flash collar of spun aluminum with a diameter of at least 1" larger than foundation sleeve. Foundation Sleeve - 16 Ga. corrugated steel tubing with lighting spike, base plate, support plate and centering wedges. Above fitting are included as standard equipment on all Diminishing Section Flagpoles with External Halyards. As with all of our Flagpoles lines, optional accessories are available. Finish- all
of our steel Flagpoles are mechanically cleaned and chemically etched to
provide a smooth surface. Two coats of two part polyurethane primer
are applied before application of two polyurethane finish coats.
Specify custom or one of these standard colors: Aluminum (Silver),
Light Bronze, Medium Bronze, Dark Bronze, Black or White.
|
Ball- (optional) - 14 Ga. aluminum with flush
seam. Choose Gold Anodized, Clear Anodized (Silver) or painted to match
shaft.
Truck - heavy-duty, internal halyard, non-fouling, revolving-type with 26 stainless steel ball bearing. Finished to match shaft. Halyard - standard equipment includes on stainless steel aircraft cable complete with proper size flag arrangement, shock spring , counterweight, beaded retainer ring and flag snaps. Winch- new, improved winch, mounted inside shaft, is operable only by a removable crank handle. Gearless and self-locking at any point, it eliminates the need for a separate brake. New direct-drive permits rapid raising and lowering of flag with little effort. As stainless steel cable unwinds from winch, it passes up through the shaft, over truck sheave to the outside of the shaft where retainer sling provides a sliding anchor. Counterweight, heavily coated with neoprene, attached to retainer sling allows halyard to be lowered for fastening or removing flag. Then, halyard is raised completely out of reach of vandals. Collar - ornamental base or flash collar is spun aluminum, with a diameter of at least 1" larger than foundation sleeve. Above fitting are included as standard equipment on all Diminishing Section Flagpoles with internal Halyards. As with all of our Flagpoles lines, optional accessories are available. Recommendation: flagpoles above 100' exposed height should be quipped with an internal halyard system to aid in raising and lowering larger flags.
|
SPECIFICATIONS
EXPOSED HEIGHT OVERALL LENGTH DIAMETER WALL # OF SECTIONS FIELD WELDS RECOMMENDED FLAG SIZE SHIPPING WEIGHT BUTT TOP 90' 99' 10.75" 4.5" .375 5 2 25' X 40' 2,700LBS 100' 110' 12.75" 5.563" .375 5 2 30' X 50' 3,900LBS 110' 121' 14" 6.625" .375 5 2 30' X 50' 4,100LBS 120' 132' 14" 6.625" .375 5 2 30' X 50' 4,900LBS 130' 143' 18" 6.625" .375 6 3 30' X 50' 6,400LBS 140' 155' 20" 8.625" .375 6 3 30' X 50' 8,900LBS 150' 165' 22" 8.625" .375 7 4 30' X 60' 10,950LBS 160' 176' 30" 10.75" .375 7 4 50' X 80' 16,900LBS 170' 187' 32" 10.75" .375 7 4 50' X 80' 18,000LBS 180' 198' 32" 10.75" .500 8 4 50' X 80' 20,000LBS 190' 209' 34" 12.75" .500 8 4 50' X 80' 23,200LBS 200' 220' 36' 12.75" .750 8 4 60' X 100' 34,500LBS
| EXTERNAL HALYARD PRICING | |
| Model | Price |
| EST90 | |
| EST100 | |
| EST110 | |
| EST120 | |
| EST130 | |
| EST150 |
Due to fluctuating steel costs, please call for all pricing. |
| EST160 | |
| EST170 | |
| EST80 | |
| EST90 | |
| EST200 | |
| INTERNAL HALYARD PRICING | |
| Model | Price |
| EST901H | |
| EST1001H | |
| EST1101H | |
| EST1201H | |
| EST1301H | |
| EST1501H |
Due to fluctuating steel costs, please call for all pricing. |
| EST1601H | |
| EST1701H | |
| EST801H | |
| EST901H | |
| EST2001H | |
